Main Paraments:

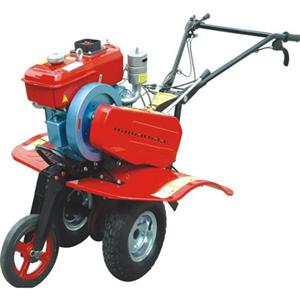

Tiller:
Horse Power/Rotary speed(rpm): 6HP/3600
Power: 4.0kw
Starting system: Recoil/kick start
Transmission: Gear
Gear Shift: High, Low, Neutral, Reverse
Wheel Size (mm): 400-8 (normal), 500-12,600-12
Tilling Depth (mm):120-300
Tilling Width (mm): 950-1050
Productivity (m2/h): 400
Driving speed(km/h): 0.5-1.3, 5, 10
Reverse speed(km/h): 2
Net/Gross Weight(kg): ≤105/120
Body Size(L*W*H): 1780*1050*800
Engine:
Engine Type: diesel direct injection single cylinder, air-cooled, vertical, 4-stroke
Cylinder DIA/Stroke(mm): 78/62
Compression Ratio: 20
Fuel Consumption (g/kw.h): ≤285.6
Displacement (L): 0.296
Fuel Tank Capacity: 3.5 L
Lubricating Oil Capacity (L): 1.1
Rated Output Power (kw/rpm): 3.68/3600
Net Weight(kg): ≤33
Body Size(L*W*H): 383*421*450
Attachment: 1 pair of blades
Loading qty( CBU):
20GP: 36units
40GP: 76units
40HQ: 114units
