Product Description
1. Type: Towing and driving
2. Rated traction (n): 2000
3. Overall dimensions (mm): L*w*h 2680*960*1250
4. Distance between wheels (mm): 800, 740, 640
5. Min space from earth to face (mm): 182
6. Constructional weight (kgs): 350
7. Usage weight of tractor (kg): 435(with plough) 495 (with rotary cultivator)
8. Theoretical speed (km/h) Forward i 1.4 ii 2.5 iii 4.1 iv 5.3 v 9.4 vi15.3 Backward i 1.0 ii 3.8
9. Clutch: Double friction flat of constant combination
10. Transmission box: 12.7(1/2")chain of 64 links
11. Gear box: (3+1)*2 gear assembly type
12. Type of steering mechanism: Meshing sleeve
13. Type of brake: Cricoid inside expansion
14. Triangle belt: B1880 3
15. Capacity of lubrication (l): 5
16. Type of driving wheel: 6.00-12
17. Diesel engine: S195, s1100

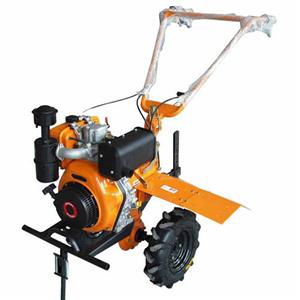

Micro Tillage Machine is soil-working equipment. This machine adopoted wide blade to work and it can stubble cleaning and rotary tillage simultaneously. The quality of the machine is reliable and the performance is well. So it can be used on both dry and paddy field and it can reduce the time, labor and cost etc.
