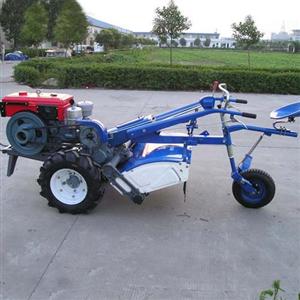

Product Description
Body size: 1800 x 1350 x 850
Plough width(mm): 800-1300
Plough Depth(mm): 150-300
Gear Shifting: -1, 0, 1, 2
Driving Model: Gear
ENGINE
Engine Model: GT186F( Diesel, Forced air-cooling )
Max. Power hp(kw)/rpm: 9HP (6.3KW) / 3600 /rpm
Bore× Stoke(mm): 86× 70
Displacement (ml): 406
Fuel tank capacity: 5.5L
Lube capacity: 1.65L
Engine type: Single-cylinder, Vertical 4-stroke, forced air-cooled,
Diesel Engine
Starting mode: Recoil
PACKING
Carton Dimension (mm): 970 x 550 x 780
N. W. /G. W. (kg): 115 / 120
Container / uint: 20'GP / 72 40'GP / 144
Note: With one pair Tiller rotor and Wheels and Mud Fender
Certificate: CE
