Product Description

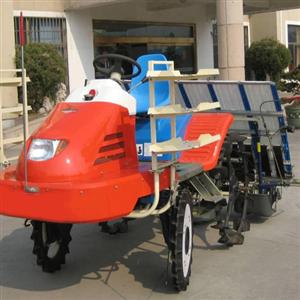

rice transplanters have two types of models auto and pedestrian. Both models have a highly efficient electronic no-contact-point igniter which gives one-time start-up. Its seeding tank is equipped with reverse seeding ladle and 2-wheel/3-fluter system is ideally designed to assure that operators acquire maximum performance efficiency. Also unique paddy wheels of rubber rug protect operators against fatigue and guarantee the expected life span of the machine longer.
An epoch-making improvement has been made in simple and trouble-free control of the automatic hydraulic operating system, which bears important part of rice transplanting by a gear pump system. Especially, the fluter senses topsoil resistance on the rugged field and automatically controls paddy wheels up and down. At this time, right and left paddy wheels are separately moving with rolling then. They bring the engine to a horizontal level to the surface with the fluter kept adhered to topsoil. Therefore, it yields simple control of constant planting depth and furrow. Also, it assures good standing of seeding by a rubber guider and a control lever which lead control of planting depth and distance.
Excellent performance engine of no contact ignition system assures the precise and good standing of seeding along with rubber guide.
Reasonably designed seedling tank assures the consistent working performance.
Control lever is fitted for good control of planting depth and distance.
Auto hydraulic system provides automatic height control of paddy wheel.
Unique paddy wheels of rubber rug enable to work comfortably in long durability.
Safety clutches for planting arm prevent the break down of planting devices from the impact against stones in the field.
Working type:Walking,Riding
Dimensions(mm)(lxwxh):2450x1480x840,2960x2010x1450
Weight (kg):170,570
Transmission:F2, R1 /F3, R1
Row interval(cm):30
Plant interval(cm):13.15.17,20.18.16.14.12
Planting density:75.85.95. Shoots/40.48.57.67.80.90. Shoots/
Performance:30min/10a ,12-19min/10a
Engine Model:E130g,Fg290g-7sx
Type:4-cycle air cooled,4-cycle air cooled
Fuel:Gasoline
Rated output(PS[kw]/rpm):2.3[1.7]/3600,18/3600
Max output(PS[kw]/rpm):3[2.2]/3600,20/3600
Displacement:130cc,286cc
Starting method:Recoil starter,Start motor
