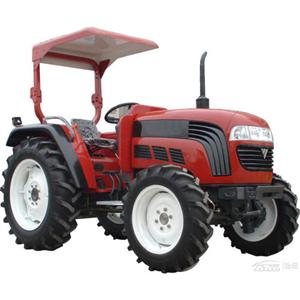

         Agricultural Big Tractor

1.low emissions, low oscillation,
2.high traction,strong power
3.capable of long time work
4.capable of loader and excavator
Drive type  4x4
Engine
Capacity of fuel tank(L) 150
Rated speed (r/min) 2300
Engine power (kw)66.2
Lowest fuel consumption (g/kw.h) ≤242
Transmission
Clutch  Dry,dual-stage type
PTO Speed(rpm)  540/1000 or 760/1000(optional)
Gearshift  8F+4R/16F+8R(optional)/8F+8R(optional)
Hydraulic system
Hydraulic output valve  2-Way (optional)
Three point linkage
Category of 3-point link Rear,Cagetory II
Lifting capacity(at point of 610mm)KN >16
Technical parameter
Dimension LxWxH (mm) 3700x2250x2700
Wheel base(mm) 2195
Track base(mm) front wheel 1610
Track base(mm) rear wheel 1620-2020(usual 1620)
The smallest clearance(mm) 379
Front tyre  11.2-24
Rear tyre  16.9-34/18.4-30(optional)
Description
We are a tractor manufacturer in China which can supply tractor from 10hp to 120hp,can put many implements,like mower,rotary tiller,plough,front loader and backhoe,wood chipper,etc,please contact us for more detials

Click:720        Addtime:2012/4/27 9:11:43
