Product Description

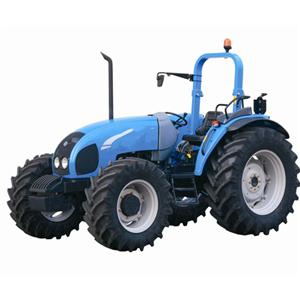

Four-wheel Tractor
Main Dispositions:
(1) Dual-function clutch
(2) Twin turning speeds of P. T. O.
(3) Power Streering
(4) Safe start switch
(5) Fiberglass Hood
(6) Combination meters
(7) Quality seat system
(8) Seat belt
Options:
(1) Folding ROPS
(2) Sun shade
(3) Cabin
(4) Hydraulic output
Tracor
Parameters:Drive Type 4WD
Overall Dimensions L*W*H(mm):3890*1828*2440
Wheel Track(mm)
Front 1420
Rear 1450
Wheel Base(mm) 2080
Ground Clearance (mm)
Under Front Axle 353
Under Rear Axle 477
Rated Traction Force(N)
InPaddy Fiedlds
In Dry Fields 14500
Construction Mass(kg) 2380
Min. Turning Radius(m) 4.1
Theoretical Speed (With out creeper gear(km/h)
Forward 1.63, 2.70, 3.47, 5.49, 4.29, 7.07, 9.10, 14.40, 11.26, 18.57, 23.88, 37.80
Reverse 4.34, 7.19, 9.24, 14.63
Theoretical Speed (With creeper gear(km/h) Forward 0.30, 0.49, 0.64, 1.00, 0.79, 1.30, 1.67, 2.64, 2.07, 3.41, 4.38, 6.94
Reverse 0.80, 1.32, 1.70, 2.69
Engine
Specifications
Type 4-Cylinder 4-stroke cycle water cooled
Rated Power(kw/hp) 44.1/60
Rated Speed (rpm) 2300
Bore*Stroke(mm) 105*125
Total Displacement(L) 4.33
