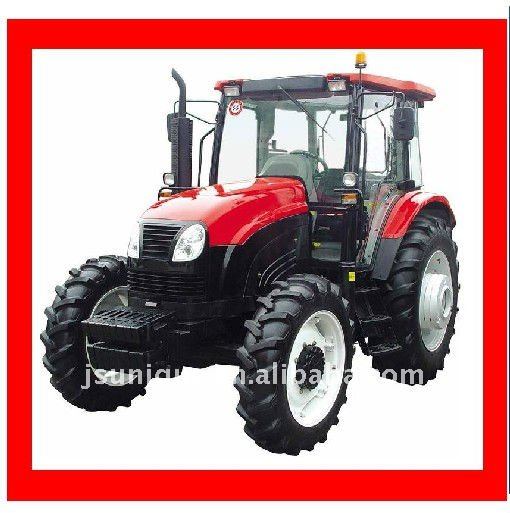

Wheeled Tractor
Features:
1. Be adopted brand engine, large reserve power, low oil consumption, good economic performance, and high in reliability.
2. Hydraulic steering combination meters and combination switch are both good to look and easy to operate.
3. Besides independent double-speed power output, the synchronizing power output is set up; 540, 720, 1000 are optional for the customers.
4. The raiser is equipped with auxiliary oil cylinder, and the raising force is 22kn-25kn, and able to lift various large-scale composite farm implements, and realize the plowing operation by four depth-adjusting modes-force adjustment, position adjustment, force and position adjustment and floating adjustment.
5. Full-closed streamline luxury driving cab, adjustable spring seat, cold or warm air conditioner and complete sound equipment, comfortable driving environment;
6. Be equipped with multi-piece three-position multi-channel valve, also can be equipped with former loading and latter excavation and other engineering tools.
|
Model
|
UQ704
|
UQ804
|
UQ854
|
UQ904
|
Dimensions
(L×W×H)
|
4593x2050x2810
|
4593x2050x2810
|
4593x2050x2810
|
4593x2050x2810
|
|
Wheelbase (mm)
|
2195
|
2195
|
2195
|
2195
|
Tread of front
wheels (mm)
|
1610~1900
|
1610~1900
|
1610~1900
|
1610~1900
|
Tread of rear wheels
(8 steps adjustable)
|
1620~2020
|
1620~2020
|
1620~2020
|
1620~2020
|
|
Minimum ground clearance (mm)
|
397
|
397
|
397
|
397
|
Minimum turning
radius (mm)
|
4.1±0.3
|
4.1±0.3
|
4.1±0.3
|
4.1±0.3
|
Gearbox position
number forward/backward
|
12/4
|
12/4
|
12/4
|
12/4
|
|
Speed range forward/backward
|
33.77~2.83/6.54~3.33
|
33.77~2.83/6.54~3.33
|
33.77~2.83/6.54~3.33
|
33.77~2.83/6.54~3.33
|
Engine
|
Model
|
LR4108
|
LR4108
|
LR4108
|
LR4108
|
|
Type
|
In-line, Water-cooled, Direct Injection, Four-stroke diesel engine
|
|
Calibrated power(kw)
|
51.5
|
59
|
62.5
|
66
|
Calibrated speed
(rpm)
|
2300
|
2300
|
2300
|
2300
|
|
Calibrated fuel consumption rate for operating condition (g/kw.h)
|
≤245
|
≤245
|
≤245
|
≤245
|
|
Tire specification: front/rear
|
6.5-20/16.9-34
|
6.5-20/16.9-34
|
11.2-24/16.9-34
|
11.2-24/16.9-34
|
|
Hydraulic lifting capacity, at 610mm after the suspension point
|
16.8
|
18.6
|
19.6
|
20.8
|
|
Form of power output shaft
|
Rear,semi-independent type
|
|
Speed of power output shaft (rpm)
|
540/760,540/1000,760/1000
|
