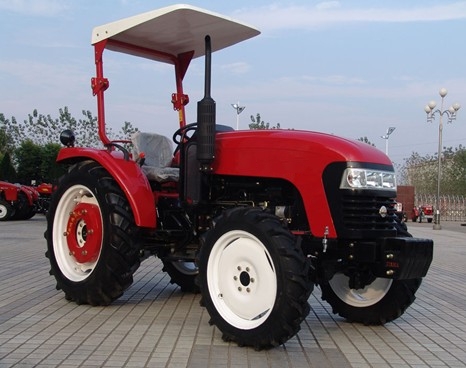

Tracor
Parameters
|
Model
|
UQ-754
|
|
Drive Type
|
4WD
|
|
Overall Dimensions L×W×H(mm):
|
4085×1929×2568
|
|
Wheel Track (mm)
|
Front
|
1450
|
|
Rear
|
1370~1790
|
|
Wheel Base(mm)
|
2236
|
|
Ground Clearance (mm)
|
340
|
|
Rated Traction Force(N)
|
16000
|
|
Construction Mass(kg)
|
3215
|
|
Min.Turning Radius(m)
|
4.3
|
|
Theoretical Speed (With out creeper gear(km/h)
|
Forward
|
3.22,4.31,6.83,9.19,11.57,15.50,24.60,33.09
|
|
Reverse
|
3.64,13.12
|
|
Theoretical Speed (With creeper gear(km/h)
|
Forward
|
0.73,0.97,1.54,2.08,2.61,3.50,5.55,7.47
|
|
Reverse
|
0.82,2.96
|
Engine
Specifications
|
Model
|
LR4108T79A
|
|
Type
|
4-cylinder 4-stroke cycle water cooled
|
|
Rated Power(kw/hp)
|
55(75)
|
|
Rated Speed (rpm)
|
2300
|
|
Bore×Stroke(mm)
|
108×125
|
|
Total Displacement(L)
|
4.6
|
Drive
System
|
Clutch
|
Dual stage
|
|
Gear Box
|
(4+1)×2×2 Sleeve gear shift
|
|
Main Drive
|
Onepair of spiral bevel gearing
|
|
Differential
|
Bevel gear
|
|
Differential Lock
|
Sliding pin,foot operated
|
|
Final Transmission
|
Planeatry reduction gear
|
Traveling
Mechanism
|
Tyre
|
Front
|
8.3-24
|
|
Rear
|
14.9-30
|
|
Steering Gear
|
Hydraulic steering
|
|
Brake
|
Disc type
|
Working
Device
|
Hydraulic System
|
Lifting Capacity at 610mm Behind Lift Point (KN)
|
12.4
|
|
3-Point Suspension
|
Category:II
|
P.T.O
Shaft
|
Rotating
Speed (rpm)
|
720 or 540/1000
|
|
Spline Size
|
6-§35Rectangular Spline
|
|
|
