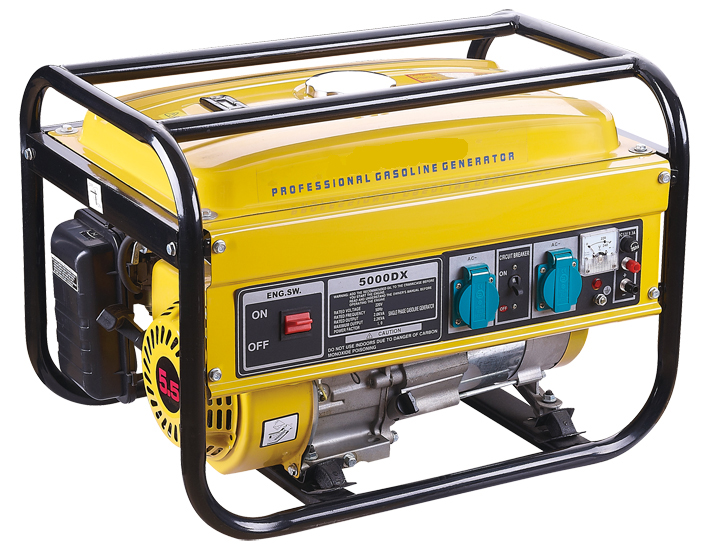

2kw Gasoline Generator (UQ-3700)
220V,50HZ
Engine Model :168F, 5.5HP
Rate Output: 2.0KW, Max Output: 2.2KW
Fuel Tank:15L, Displacement: 163cc
Recoil Start
|
Generator
|
Specification
|
UQ3700
|
UQ6500
|
|
Max. output power(W)
|
2200
|
2500
|
5500
|
6000
|
|
Rated output power(W)
|
2000
|
2200
|
5000
|
5500
|
|
Rated rotation speed(rmp)
|
3000/3600
|
|
Rated voltage(V)
|
115 230 120 240
|
|
Rated Frequency(Hz)
|
50/60
|
|
Phase
|
Single Phase
|
|
DC output
|
12V×8.3A
|
|
Voltage regulate
|
AVR
|
|
Power factor
|
1
|
|
Continuous running time(hrs)
|
13
|
8
|
|
Engine
|
Engine type
|
UQ168F
|
UQ188F
|
|
Bore*stroke(mm)
|
68×45
|
88×64
|
|
Displacement(cm3)
|
163
|
389
|
|
Compression Ratio
|
8.5:1
|
8.0:1
|
|
Recommend power Output(HP/rpm)
|
5.5/3600
|
13/3600
|
|
Max Torque N.m/rpm
|
11/2500
|
25.5/2500
|
|
Fuel
|
Gasoline
|
|
Starting system
|
Recoil/Electric
|
|
Oil capacity(L)
|
0.6
|
1.1
|
|
Fuel tank capacity(L)
|
15
|
25
|
|
Noise level(7M)
|
67
|
76
|
|
Parking Details
|
Measurement(mm)
|
600×440×435
|
710×530×550
|
|
N.W./G.W.(Kg)
|
38
|
74.5
|
|
