         UQ-HP20A

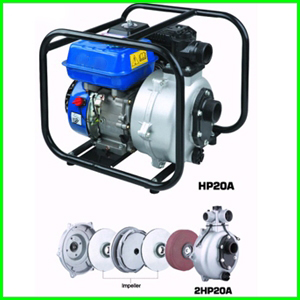

2'' Gasoline High Pressure Water Pump(UQ-HP20A)



SPECIFICATIONS:



Inlet and outlet size: 50mm/2 inch (2")
  Rated speed (HP/rpm): 3,600rpm
  Max.Flow (L/h ): 30000L/h
  Max.lift Head (m): 65m
  Suction height (m): 7m
  Engine model: 160F-2
  Displacement: 196cc
  Engine max output: Hp/rpm: 6.5/3600
  Fuel volume (L): 3.6L
  Bore x stroke: 68x45
  Compression ratio: 8.5:1
  Oil volume (L): 0.6L
  Run time per tankful@3/4 Load: 2.2h
  Ignition model: transistor magneto
  Start mode: recoil
  NW/GW (kg): 28.5/29.5
  Package dimensions (mm): 490x410x420
