         UQ-30WP

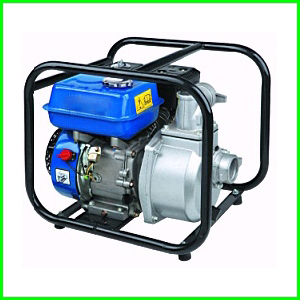

3‘’ 6.5HP Honda Gasoline Water Pump(UQ-30WP)





Specifications:





Inlet and outlet size: 80 (3")
  Rated speed (HP/rpm): 3,600rpm
  Max.Flow (L/h ): 6000L/h
  Max.lift Head (m): 30m
  Suction height (m): 7m
  Engine model: 160F-2
  Displacement: 196cc
  Engine max output: Hp/rpm: 6.5/3600
  Fuel volume (L): 3.6L
  Bore x stroke: 68x54
  Compression ratio: 8.5:1
  Oil volume (L): 0.6L
  Run time per tankful@3/4 Load: 2.2h
  Ignition model: transistor magneto
  Start mode: recoil
  NW/GW (kg): 27
  Package dimensions (mm): 500x375x425
