         Two Disks Fertilizer Spreader

Specifications

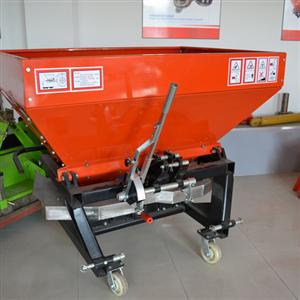

Two disks fertilizer spreader
Centrifugal spreader fertilizer is intended for superficial entering mineral fertilizers of all types in which maintenance there are no hardened pieces in the size more than 25 mm, also for entering crop, seeds, grasses, etc. cultures. The width of capture depends on height of disks above ground or plants of their inclination and frequency of rotation, and also from installation of blades of a disk. Management: manual or hydraulic. Aggregate with tractors 14 kN, etc. tractors. The spreader is hung on hinged system of a tractor by means of connecting fingers.
Technical data:

Spreading width, m 18
Work speed, km/h 6-12
Fertilizer dosage, kg 100-1000
Fertilizer bin caacity, kg 1000
Overall dimensions(length/width/height), mm 1490/1730/1240
Weight, kg 290
