Specifications
1) environmental and energy-efficient
2) This process is simple in equipment, easy in operation

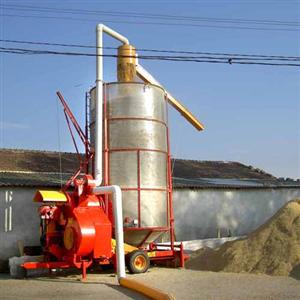

Grain Dryer Machine mix-flow(up- and down-stream )? grain dryer ,which are allows meeting the demands of any farming enterprise.
Grain Dryer Machine is ideal for drying cereal .wheat,corn,maize,rye barely,paddy,rice paddy,oleaginous and bean cultures,as well as seed grain ,not only can make continuous drying ,but also can achieve Circulation drying, with advanced equipment and advanced technology filled the gap in the world.Save up 30-50%
Through Computer program operations to control the following :
1)automatic control of raw grains input
2)hot air stove of? accurately controlling for automatic
3)the control of hot air and temperature for different? section
4)with temperature-based automatic moisture control.
4)the control of? the air volume for output
5)Automatically adjusts dryer unloading speed to maintain grain discharge moisture.
Specifications and technical parameters
|
Drying?capacity(ton/24h)
|
50
|
100
|
200
|
400
|
|
size(M)
|
3.0×3.0
|
3.0×3.0
|
3.0×3.0×2
|
3.0×3.0×4
|
|
height(M)
|
12
|
18
|
18
|
18
|
|
coal?consumption(coal?kg/h)
|
40~80
|
40~100
|
50~130
|
100~400
|
|
installed?capacity(KW)
|
40
|
60
|
70
|
120
|
|
Drying?rate(%)
|
2~16
|
|
heating?medium
|
clean?air
|
|
Temperature?of?hot?air(oC)
|
50-120
|
|
Grain?drying?temperature(oC)
|
30-55
|
|
uneven?of?drying(%)
|
|
|
Breakage?of?drying(%)
|
|
|
heat?consumptionkj/kgH2O)
|
5800
|
|
