Parameters
|
Model
|

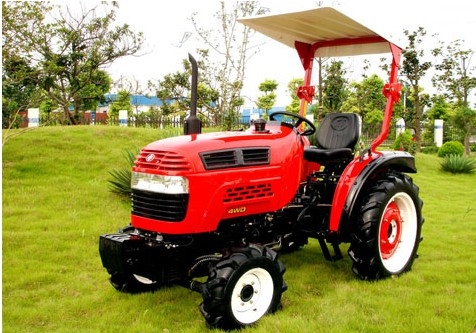

UQ-204
|
|
Drive Type
|
4WD
|
|
Overall Dimensions L×W×H(mm):
|
3080×1280×1930
|
|
Wheel Track (mm)
|
Front
|
1000,1100
|
|
Rear
|
1040-1200
|
|
Wheel Base(mm)
|
1645
|
|
Ground Clearance (mm)
|
295
|
|
Rated Traction Force(N)
|
4800
|
|
Construction Mass(kg)
|
1120
|
|
Min.Turning Radius(m)
|
2.5
|
|
Theoretical Speed(Without creeper) ( km/h)
|
Forward
|
1.68,3.31,5.52,7.75,15.30,25.50
|
|
Reverse
|
1.33,6.15
|
|
Theoretical Speed(With creeper)(km/h)
|
Forward
|
0.31,0.62,1.03,1.45,2.85,4.76
|
|
Reverse
|
0.25,1.15
|
Engine
Specifications
|
Model
|
LL380T/Y380
|
|
Type
|
3-Cylinder Vertical, water cooled,4 stroke cycle
|
|
Rated Power (kw/hp)
|
14.7/20
|
|
Rated Speed (rpm)
|
2400
|
|
Bore×Stroke (mm)
|
80×90
|
|
Total Displacement (L)
|
1.357
|
Drive
System
|
Clutch
|
Dual-Stage
|
|
Gear Box
|
(3+1)×2
|
|
Main Drive
|
One Pair of Spiral Bevel Gearing
|
|
Differential
|
Bevel Gear
|
|
Differential Lock
|
Jaw Lock
|
|
Final Transmission
|
External gearing, Spur Gear
|
Traveling
Mechanism
|
Tire
|
Front
|
6.00-12
|
|
Rear
|
8.3-24
|
|
Steering Gear
|
Full Hydraulic Steering
|
|
Brake
|
Shoe type
|
Working
Device
|
Hydraulic System
|
Lifting Capacity at 610mm Behind Lift Point (N)
|
3600
|
|
3-Point Suspension
|
Category :I
|
P.T.O
Shaft
|
Speed (rpm)
|
540/1000
|
|
Spline Size
|
6-§35Rectangular Spline
|
|
|
