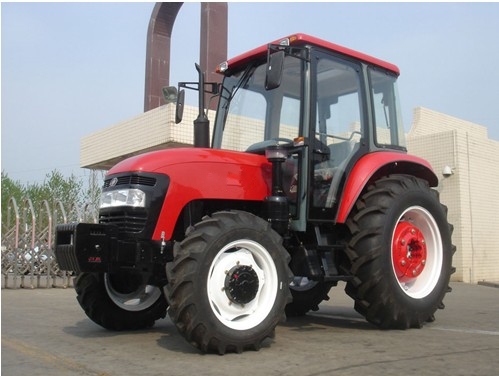

Ttactor
Parameters
|
Model
|
UQ-854B
|
|
Drive Type
|
4WD
|
|
Overall Dimensions L× W× H(mm)
|
4396× 2038× 2810
|
|
Wheel Track(mm)
|
Front
|
1610
|
|
Rear
|
1620-2020
|
|
Wheel Base(mm)
|
2195
|
Ground
Clearance(mm)
|
379
|
|
RatedTractionForce(N)
|
19500
|
|
Construction Mass(kg)
|
3920
|
|
Min. Turning Radius(m)
|
4.0
|
|
TheoreticalSpeed(Withoutcreeper km/h)
|
Forward
|
2.31, 2.60, 5.76, 8.03
, 10.04, 15.61, 24.98, 34.85
|
|
Reverse
|
3.10, 4.83, 7.73, 10.78
|
|
TheoreticalSpeed(With creeper km/h)
|
Forward
|
0.46, 0.72, 1.15, 1.61, 2.00, 3.12, 4.99, 6.97
|
|
Reverse
|
0.62, 0.97, 1.54, 2.16
|
Engine
SpecificationsClutch
|
Model
|
QC4115
|
|
Type
|
4 -cylinder 4-stroke cycle wter cooled, direct-injection
|
|
Rated Power(kw/hp)
|
62.5(855)
|
|
Rated Speed(rpm)
|
2300
|
|
Bore× Stroke(mm)
|
108× 135
|
|
Total Displacement
|
4.94
|
Drive
System
|
Clutch
|
Dual Stage
|
|
Gear Box
|
4× (2+1)× 2 Sleeve gear shift
|
|
Main Drive
|
One pair of spiral bevel gear
|
|
Differential
|
Bevel gear
|
|
Differential Lock
|
Sliding pin, foot operated
|
|
Final Transmissions
|
Planetary reduction gear
|
Traveling
Mechanism
|
Tyre
|
Front
|
11.2-24 or 12.4-24
|
|
Rear
|
16.9-34
|
|
Steering Gear
|
Hydraulic steering
|
|
Brake
|
Oil immersed multiplate disc
|
|
Working Device
|
Hydraulic System
|
Lifting Capacity at610mm Behind Lift Point(kg)
|
14100
|
|
3-Point Suspension
|
Category: II
|
|
P. T. O. shaft
|
Rotating
|
540/1000 or 720/1000
|
|
Spkine Size
|
21-Φ 35 involute spline
|
|
|
