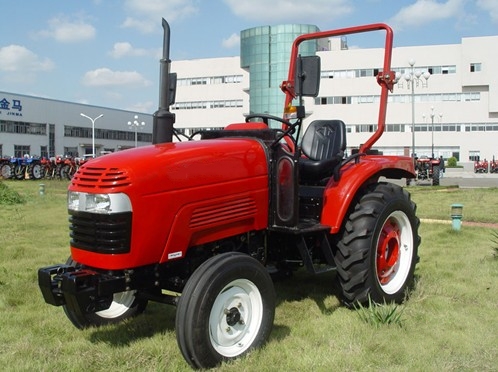

Tractor
Parameters
|
Model
|
UQ-304E
|
|
Drive Type
|
4WD
|
|
Overall Dimensions L×W×H(mm):
|
3352×1485×2420
|
|
WheelTra(mm)
|
Front
|
1200
|
|
Rear
|
1200~1500
|
|
Wheel Base(mm)
|
1833.5
|
|
Ground Clearance (mm)
|
292
|
|
Rated Traction Force(N)
|
6400
|
|
Construction Mass(kg)
|
1935
|
|
Min.Turning Radius(m)
|
4.15
|
|
Theoretical Speed (With out creeper gear(km/h)
|
Forward
|
2.248,3.008,4.217,6.258,10.37,13.875,19.451,28.867
|
|
Reverse
|
2.861,13.2
|
Engine
Specifications
|
Model
|
4L22T1
|
|
Type
|
4-cylinder, Vertical
water-cooled,
4 stroke cycle
|
|
Rated Power(kw/hp)
|
22.1/30
|
|
Rated Fuel Consumption(g/kw/h)
|
≤265
|
|
Rated Speed (rpm)
|
2350
|
|
Bore×Stroke(mm)
|
85×95
|
|
Total Displacement(L)
|
2.156
|
Drive
System
|
Clutch
|
Dual stage
|
|
Gear Box
|
(4+1)×2
|
|
Main Drive
|
One Pair of Spiral Bevel Gearing
|
|
Differential
|
Bevel Gear
|
|
Differential Lock
|
Jaw Lock
|
|
Final Transmissions
|
Spur Gear,External,Gearing
|
Travelling
Mechanism
|
Tyre
|
Front
|
7.50-16
|
|
Rear
|
11.2-24
|
|
Steering Gear
|
Power Steering
|
|
Brake
|
Disc type
|
Working
Device
|
Hydraulic System
|
Lifting Capacity at 610mm Behind Lift Pioint (N)
|
4900
|
|
3-Point Suspension
|
Category:I
|
P.T.O
Shaft
|
Rotating
Speed (rpm)
|
540/1000
|
|
Spline Size
|
6-§35Rectangular Spline
|
|
|
|
|
|
|
