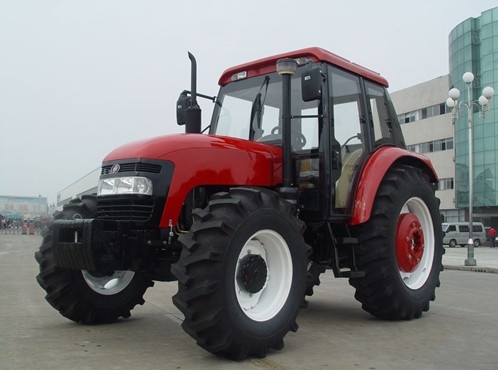

Tractor
Parameters
|
Model
|
UQ-1254
|
|
Drive Type
|
4WD
|
|
Overall Dimensions L×W×H(mm)
|
4800X2330X2980
|
|
Wheel Track(mm)
|
Front
|
1808-2148
|
|
Rear
|
1656-2156
|
|
Wheel Base(mm)
|
2689
|
Ground
Clearance(mm)
|
475
|
|
Rated Traction Force(N)
|
27000
|
|
Construction Mass(kg)
|
4600
|
|
Min.Turning Radius(m)
|
6.8
|
|
Speed ( Withoutcreeper km/h)
|
Forward
|
2.24,3.34,4.06,6.34,4.76,7.08,8.61,13.46,
10.37,15.43,18.77,29.32
|
|
Reverse
|
4.84,7.21,8.76,13.69
|
Engine
SpecificationsClutch
|
Model
|
LRC6108T79
|
|
Type
|
6 -cylinder 4-stroke cycle wter cooled,
|
|
Rated Power(kw/hp)
|
92/125
|
|
Rated Speed(rpm)
|
2400
|
|
Bore×Stroke(mm)
|
108×135
|
|
Total Displacement(L)
|
7.41
|
Drive
System
|
Clutch
|
Dual Stage
|
|
Gear Box
|
4×(3+1)Sleeve gear shift
|
|
Main Drive
|
One pair of spiral bevel gear
|
|
Differential
|
Bevel gear
|
|
Differential Lock
|
Sliding pin,foot operated
|
|
Final Transmissions
|
Planetary reduction gear
|
Tavelling
Mechanism
|
Tyre
|
Front
|
14.9-24
|
|
Rear
|
18.4-38
|
|
Steering Gear
|
Hydraulic steering
|
|
Brake
|
Oil immersed multiplate disc
|
|
Working Device
|
Hydraulic System
|
Lifting Capacity at610mm Behind Lift Point(kg)
|
26000
|
|
3-Point Suspension
|
Category:II
|
|
P.T.O.shaft
|
Rotating
|
540 OR 1000
|
|
Spkine Size
|
21-Φ35 involute spline
|
|
|
