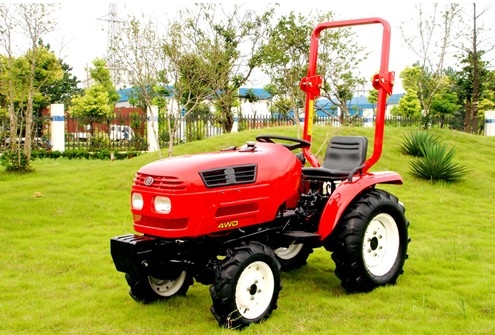

Tractor
Parameters
|
Model
|
UQ-164
|
|
Drive Type
|
4WD
|
|
Overall Dimensions L×W×H(mm):
|
2055×945×1050
|
|
Wheel Track (mm)
|
Front
|
800
|
|
Rear
|
740,840,940
|
|
Wheel Bass(mm)
|
1280
|
|
Ground Clearance (mm)
|
250
|
|
Rated Traction Force(N)
|
3900
|
|
Construction Mass(kg)
|
552
|
|
Min.Turning Radius(m)
|
2.30
|
|
Theoretical Speed (km/h)
|
Forward
|
1.32,1.95,3.04,6.01,8.9,13.92
|
|
Reverse
|
1.63,7.46
|
Engine
Specifications
|
Model
|
3M78
|
|
Type
|
3-Cylinder Vertical,water cooled,4 stroke cycle
|
|
Rated Power(kw/hp)
|
11.8/16
|
|
Rated Speed (rpm)
|
2300
|
|
Bore×Stroke (mm)
|
75×77.6
|
|
Total Displacement(L)
|
1.028
|
Drive
System
|
Clutch
|
7”Single Stage
|
|
Gear Box
|
(3+1)×2
|
|
Main Drive
|
Columniform gear
|
|
Differential
|
Bevel Gear
|
|
Differential Lock
|
Jaw Lock
|
|
Final Transmission
|
Spur Gear, External gearing
|
Traveling
Mechanism
|
Tyre
|
Front
|
5.00-12
|
|
Rear
|
7.5-16
|
|
Steering Gear
|
Mechanical
|
|
Brake
|
Disc type
|
Working
Device
|
Hydraulic System
|
Lifting Capacity at 610mm Behind Lift Point (N)
|
2280
|
|
3-Point Suspension
|
Category:0
|
P.T.O
Shaft
|
Rotating
Speed (rpm)
|
540/720/1000
|
|
Spline Size
|
6-§35 Rectangular Spline
|
|
|
|
|
|
|
